| Tube chain conveyor |

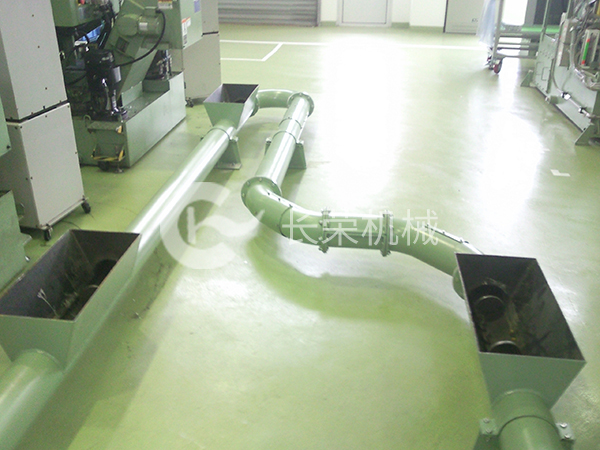

Product name：Tube chain conveyor
Description: pipe chain conveyor is a continuous conveying equipment for conveying powder, small particles and small pieces of bulk materials, which can be combined horizontally, obliquely and vertically. It is generally used in fine chemicals, biomedicine, food industry and other industries.
Customization Description: the equipment can be customized according to customer requirements.
model:
| model: |
Conveying distance |
Conveying materials |
Bulk density |
Conveying capacity |
Motor power |
| GL80 |
Level 4.8m, lift 9.9m |
Chemical granule |
650kg/m3 |
2m3/hr |
2.2KW |
| GL100 |
Level 4.3m, lift 10.5m |
Dry sludge particles |
600kg/m3 |
3m3/h |
3KW |
| GL150 |
Level 3.6m, lift 7.2m |
Powdery fine particles |
500kg/m3 |
2m3/h |
2.2KW |
| GL160 |
Level 3.5m, lift 6.8m |
iron filings |
1100kg/m3 |
3m3/h |
3KW |
| GL200 |
The level is 9 meters and the lift is 17 meters |
Powdery fine particles |
500kg/m3 |
5m3/h |
5.5KW |
|
