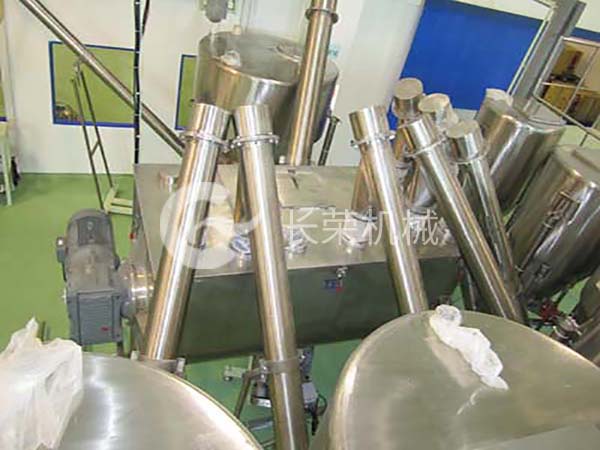

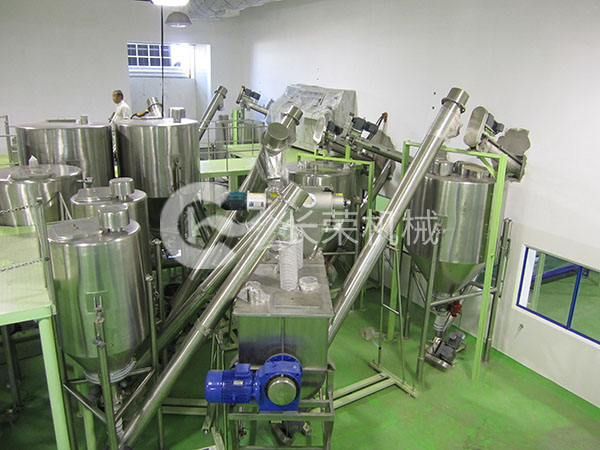

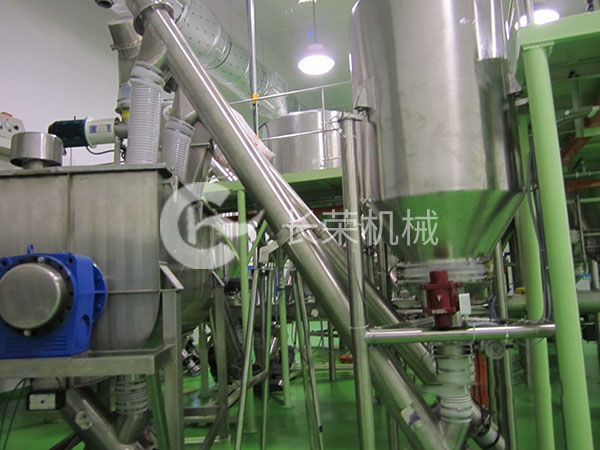

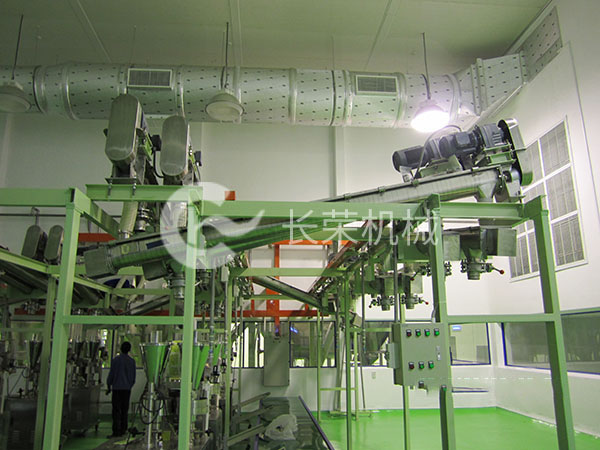

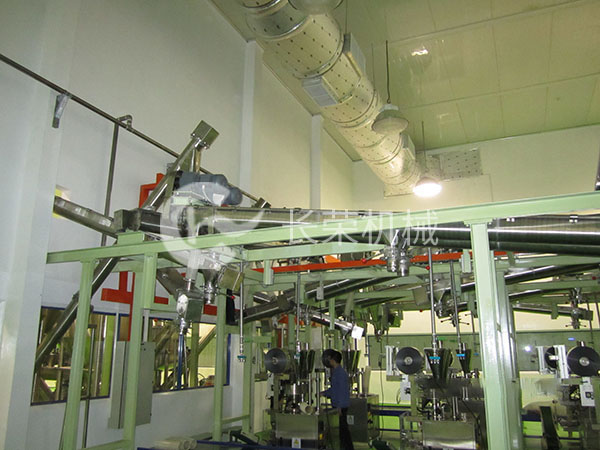

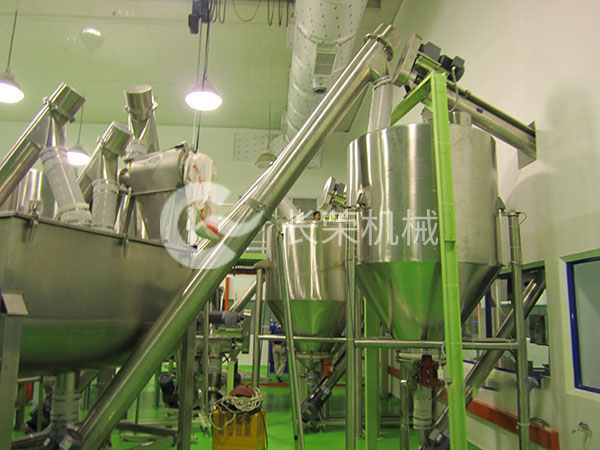

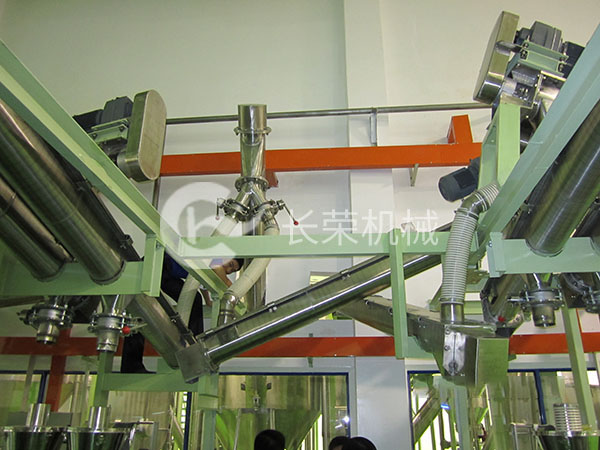

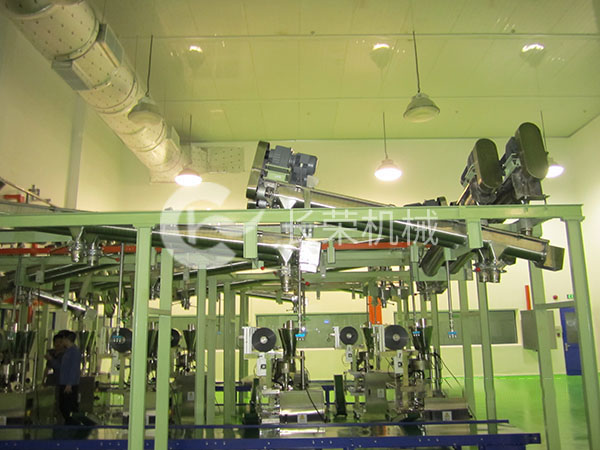

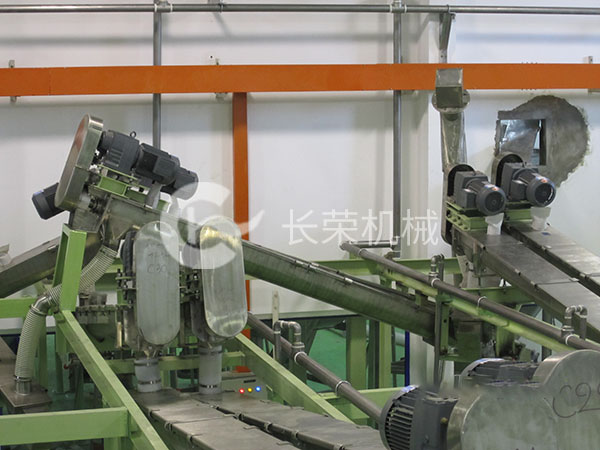

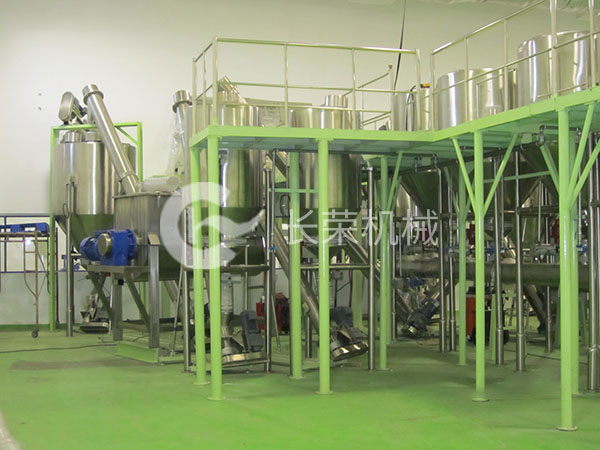

Pneumatic conveying system for coffee factory in Thailand

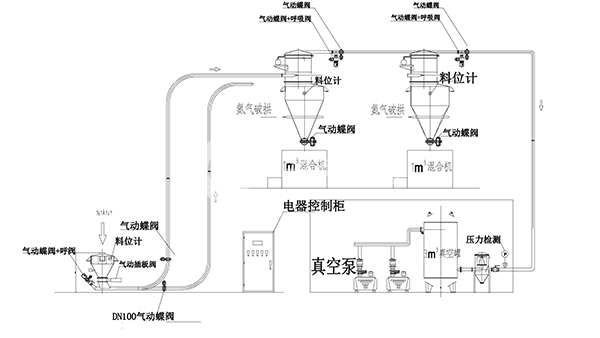

Technical description:
1. conveying materials: a mixture of creamer, sugar and coffee, with a mass ratio of 8:8:2 and a specific gravity of 0.6 ~ 0.6 after mixing.
2.The horizontal continuing distance is about 5m and the vertical height is about 6m.
3.The two conveying lines can be switched to two different mixers.
4.The parts in contact with materials are food grade SUS304.
5.All pipelines are food grade, and the inner wall is polished
6.The compressed air required by the system is 0.5MPa. (Note: the compressed air required for pulse meets the food requirements)
7.Equipment pipeline grounding.
System conveying capacity: 6 t / h.
Customization Description: the equipment can be customized according to customer requirements.
Table 1: pneumatic conveying parameters Table 2: parameters of vacuum pump
Conveying materials Coffee, sugar, creamer mixture Pressure detection German Becker vacuum pump
Conveying distance The horizontal distance is 5M and the vertical distance is 6m Model VILF2.250
Conveying capacity 6 t / h Pumping rate 250m3/h
System power consumption 16KW,380V,50HZ,3PH vacuum degree 200mbar
System gas consumption 100L / min (compressed air, air pressure 0.5 ~ 0.7MPa) Motor power 5.5KW,80V,50HZ,3PH
quantity 3 sets
