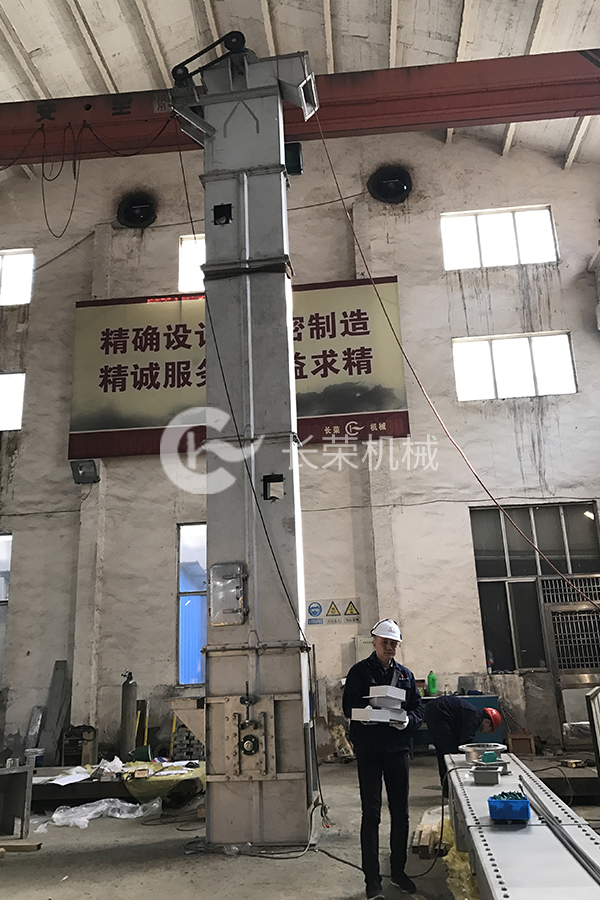

Vertical bucket elevator

Bucket elevator can be divided into belt type and chain type, with compact structure, small floor area and good sealing performance.. The belt bucket elevator has the advantages of light and convenient transportation, convenient maintenance and low noise. It is suitable for the transportation of powdery and granular materials with a transportation density of less than 1.5. The material temperature is generally below 100 ℃. Chain bucket elevator is used for conveying powdery and granular materials with large conveying capacity and material density greater than 1.5. The material temperature is generally above 100 ℃.

Customization Description: the equipment can be customized according to customer requirements.

Belt bucket elevator Model:

Model TD100 TD130 TD160 TD250 TD315 TD400 TD500 TD600
Speed (M / s) 0.4-1.4
Conveying capacity (m3 / h) ≤3 ≤4 ≤20 ≤38 ≤42 ≤68 ≤96 ≤148
Lifting height (m) ≤12


Chain bucket elevator Model:

Model TH160 TH200 TH250 TH315 TH400 TH500 TH630
Speed (M / s) ≤1.0
Conveying capacity (m3 / h) ≤15 ≤25 ≤35 ≤59 ≤94 ≤118 ≤185
Lifting height (m) 10-40

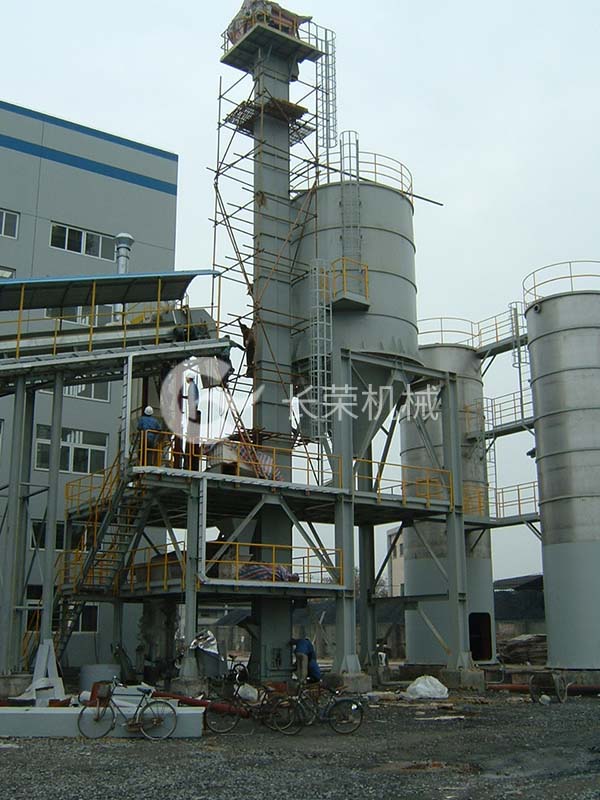

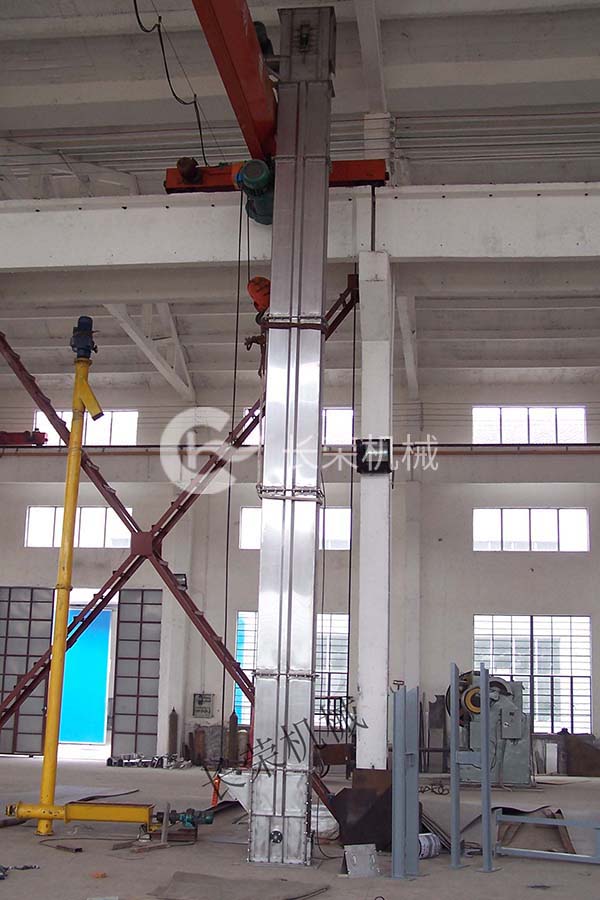

TB200 Carbon steel chain hoist TB400 Chain hoist

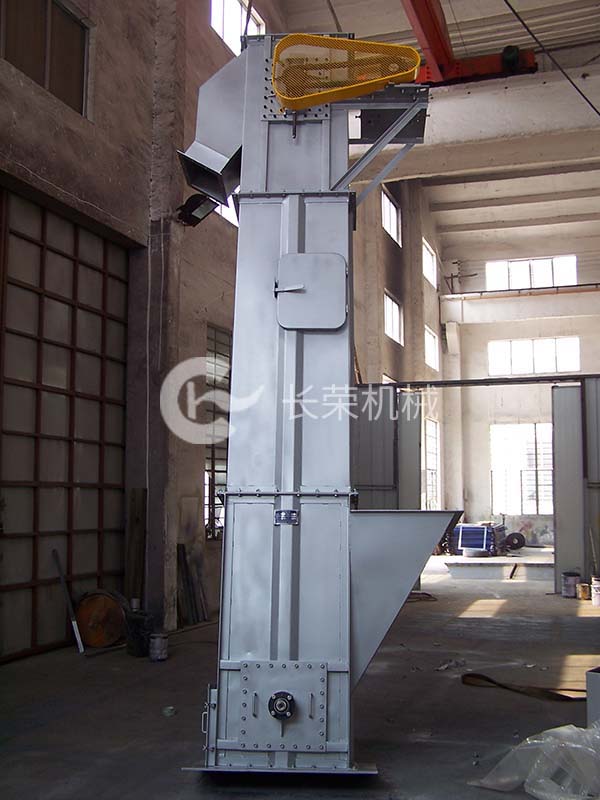

TD160 Belt elevator
