| Tons press bag machine | ||

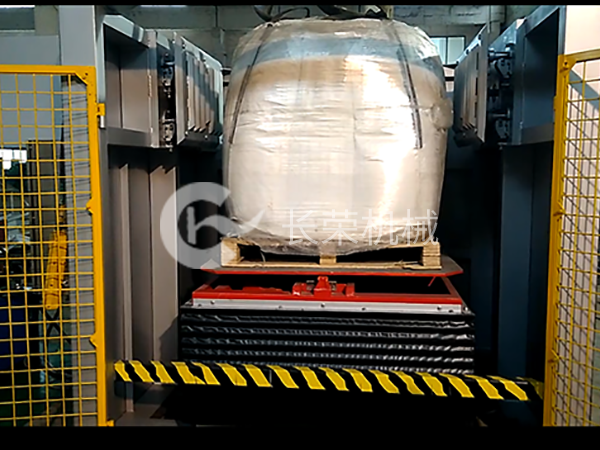

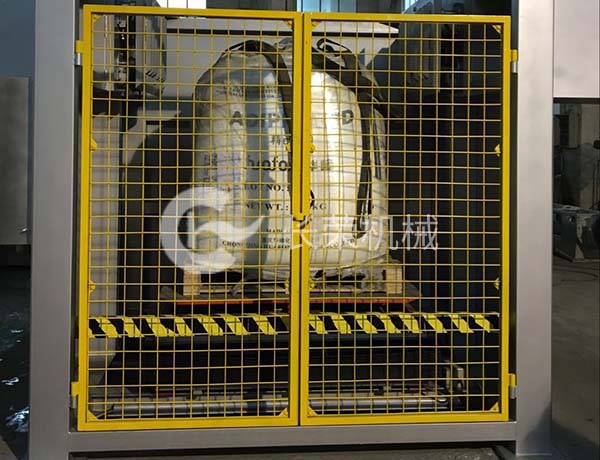

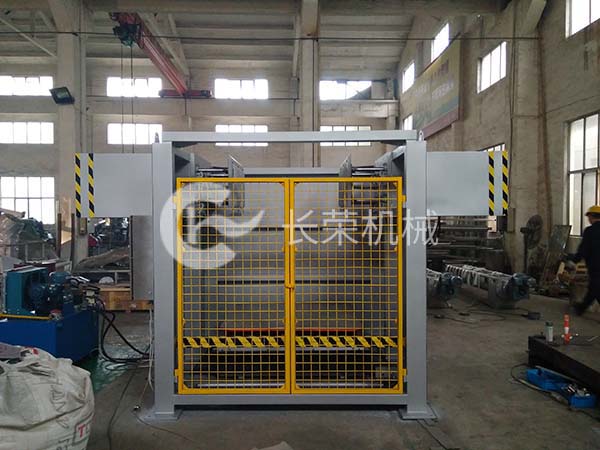

Product name：Tons press bag machine
Product specification：CRYB1000
Product composition: body frame + push rod assembly + lifting platform + hydraulic station + control cabinet
?90 rotatable panels: 14mm steel flat plate, driven by 0.11kw motor
?Lifting table single acting oil cylinder: diameter 100, 2
?Double acting oil cylinder for extrusion: diameter 8 -, 2, pressure about 5T
?Hydraulic oil: 32# wear resistant hydraulic oil
?Electrical control:PLC
?Hydraulic station: one set of 4.0kw motor, gear pump and solenoid valve, motor voltage 380V, 3Ph, 50Hz
Customization Description: the equipment can be customized according to customer requirements.
 Product introduction: it is widely used in quantitative packaging of granular, sheet and powder materials in fine chemical industry, grain and oil, building materials, rubber and plastic industries. Ton packaging semi-automatic packaging machine is suitable for 1000kg quantitative packaging. Lifting table with fixed scissor (including extrusion oil cylinder)
| ||
